How to Connect Audio to an X Rocker Gaming Chair

Connecting an X Rocker gaming chair is usually straightforward once you identify two things: the audio input on your exact chair and the audio output available on your console, television or computer.

For most PS5 and Xbox players, the simplest method is a 3.5 mm cable from the controller to the chair. Nintendo Switch and PC users can often use either a cable or Bluetooth, while television-based setups can use a headphone output, RCA connection, wireless X Rocker transmitter or digital-to-analog converter.

However, X Rocker has produced many different control panels. Some models have Bluetooth, some use a proprietary wireless transmitter, and others accept only 3.5 mm or RCA audio. Check the label underneath the chair and consult its manual before buying additional adapters.

Quick answer: Connect a 3.5 mm cable from the controller, television or computer's headphone output to the chair's green AUX, Audio In or Input port. Switch the chair on, select AUX mode if required and raise both the source volume and chair volume gradually.

Check Your X Rocker Model First

Do not assume every X Rocker supports the same connection methods.

Look for the model number on:

• The label underneath or behind the chair
• The original packaging
• The power adapter label
• The first pages of the instruction manual

Next, inspect the control panel for these connections:

Important: A USB socket does not automatically mean that the chair accepts USB audio. On some accessories, USB supplies power only.

Not every X Rocker includes speakers, a subwoofer or vibration motors. These features vary by model, and bass-responsive vibration works only when the chair receives a usable audio signal.

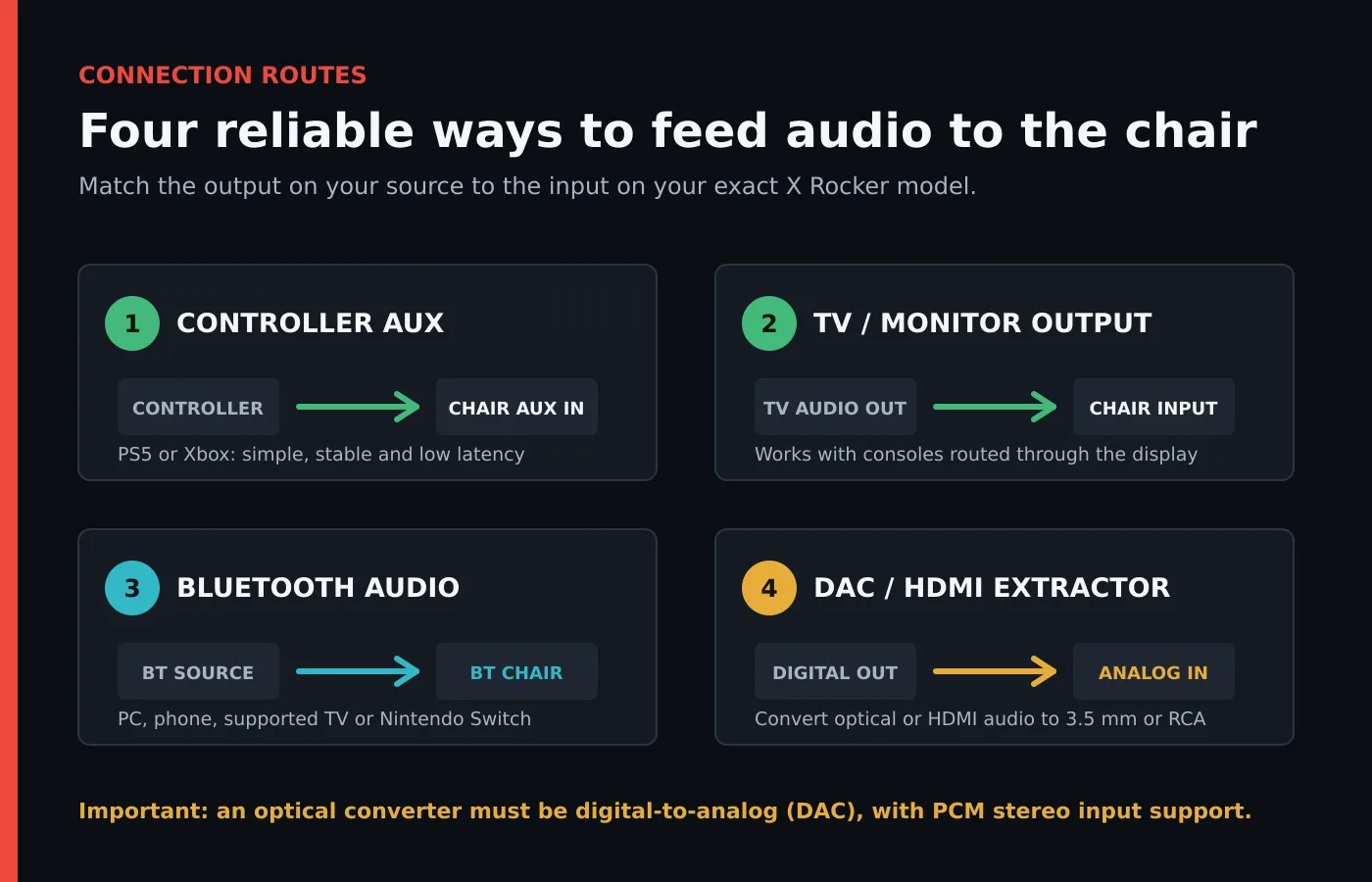

Best Connection Method by Platform

Method 1: Connect Through a PS5 or Xbox Controller

A controller cable is normally the quickest and most reliable option for modern consoles.

What You Need

• A powered X Rocker chair with an analog audio input
• A 3.5 mm stereo cable
• An official PS5 DualSense or Xbox controller with a headphone socket

Some X Rocker control panels use red and white RCA input sockets instead of a single green 3.5 mm input. In that case, use the appropriate 3.5 mm-to-RCA cable supplied with the chair.

Connecting an X Rocker to PS5

1. Connect the chair to its power adapter and switch it on.
2. Insert one end of the 3.5 mm cable into the DualSense headphone port.
3. Connect the other end to the chair's green Audio In or Input port.
4. Press the PlayStation button to open the Control Center.
5. Select Sound.
6. Set Output Device to Headset (Controller).
7. Set Output to Headphones to All Audio.
8. Increase the PS5 headphone volume.
9. Adjust the chair's volume and bass controls.

These steps follow X Rocker's controller connection instructions. Chat-through-chair support depends on the chair model and control panel.

Connecting an X Rocker to Xbox Series X or S

1. Power on the chair.
2. Connect a 3.5 mm cable to the Xbox controller's headset socket.
3. Connect the other end to the chair's audio input.
4. Press the Xbox button.
5. Open the audio controls using the speaker icon.
6. Increase the headset volume and check that the balance is not set entirely to chat.
7. Adjust volume and bass on the chair.

Microsoft confirms that Xbox Series controllers include a 3.5 mm connection for wired audio devices in its Xbox headset compatibility information.

Advantages

• No Bluetooth pairing required
• Very little perceptible delay
• Works when the television has no audio output
• No separate converter required
• The chair follows the console used by the controller

Disadvantages

• A cable runs between the controller and chair
• Controller battery life may decrease more quickly
• Voice-chat support varies by chair
• Disconnecting the controller stops the audio
• The system may treat the chair as a headset and mute the television

Method 2: Connect Through a TV or Monitor

Using the display's audio output is often the best permanent setup because every HDMI device connected to that screen can use the chair.

Using a 3.5 mm Headphone Output

1. Find the headphone or Audio Out socket on the television or monitor.
2. Connect it to the chair's 3.5 mm input.
3. Open the display's sound settings.
4. Select Headphones, Wired Audio, External Speakers or a similar option.
5. Start with the source volume at approximately 50%.
6. Increase the chair's volume gradually.
7. Adjust bass or vibration after confirming that normal audio works.

This method works with PS5, Xbox, Nintendo Switch, streaming boxes and many older consoles because the display handles the audio extraction.

Using RCA Audio Output

Some televisions have red and white RCA outputs. Connect them as follows:

TV RCA output → RCA cable → chair RCA input

Check that the television ports are labelled Audio Out. Red and white sockets labelled Input, AV In or Component In cannot send audio to the chair.

Fixed Versus Variable Output

• Variable output: The television remote controls the output level.
• Fixed output: The television sends a constant signal, and the chair controls the volume.

For a fixed output, begin with the chair volume low to prevent unexpectedly loud audio.

Method 3: Connect Through Bluetooth

Bluetooth works only when both the source and the chair support compatible Bluetooth audio.

Pairing an X Rocker Chair

1. Turn the chair on.
2. Select Bluetooth or BT mode.
3. Hold the Bluetooth or pairing button until its indicator flashes.
4. Open Bluetooth settings on the source device.
5. Select the name shown for the chair, such as XROCKER or Gaming Chair.
6. Wait for the indicator to become steady.
7. Play audio and raise the volume gradually.

If the chair does not appear, disconnect it from previously paired phones or computers. Many models connect to only one source at a time.

PC, Laptop and Mobile Devices

Bluetooth is normally suitable for:

• Windows computers
• macOS devices
• Smartphones
• Tablets
• Compatible smart televisions

After pairing a computer, select the chair as the system's sound-output device. If Windows shows separate stereo and hands-free profiles, select the stereo playback profile when voice chat is not required.

Players who switch between computers, televisions and mobile hardware may also find HEET's guide to Honkai: Star Rail cloud gaming useful.

Nintendo Switch Bluetooth Setup

1. Put the X Rocker into pairing mode.
2. Open System Settings on the Switch.
3. Select Bluetooth Audio.
4. Select Pair Device.
5. Choose the chair when it appears.

Nintendo states that Switch Bluetooth audio uses the A2DP profile with the SBC codec. Bluetooth microphones are not supported, local wireless communication disables Bluetooth audio, and the number of connected wireless controllers may be limited. See Nintendo's Bluetooth audio support information.

Can an X Rocker Connect Directly to PS5 With Bluetooth?

Normally, no. PS5 does not support generic Bluetooth audio speakers or headsets. Sony identifies standard Bluetooth audio devices as incompatible with PS5 in its Bluetooth compatibility notice.

Use one of these options instead:

• Connect the chair to the DualSense controller.
• Pair the chair with a compatible Bluetooth television.
• Use the display's analog audio output.
• Use the wireless DAC supplied with a compatible X Rocker.
• Use a suitable HDMI audio extractor.

Can an X Rocker Connect Directly to Xbox Using Bluetooth?

Usually not through standard Bluetooth. Xbox console audio normally uses Xbox Wireless or another specifically supported connection, even when an accessory also offers Bluetooth for phones or PCs.

Use the controller's 3.5 mm port or the television's audio output instead.

Method 4: Use an X Rocker Wireless Transmitter

Some wireless X Rocker chairs use a dedicated transmitter rather than ordinary Bluetooth.

Depending on the model, the transmitter can receive audio through:

• USB
• Optical SPDIF
• 3.5 mm analog input
• RCA input
• A television headphone connection

The transmitter and chair must be set to the same wireless band, commonly channel 1, 2 or 3.

Using a Compatible X Rocker USB DAC on PS5

1. Connect the transmitter to a PS5 USB port.
2. Set a wireless channel on the transmitter.
3. Select the same channel on the chair.
4. Open Settings → Sound → Audio Output on PS5.
5. Select the USB audio device.
6. Set Output to Headphones to All Audio.

This feature is model-specific. X Rocker documents it for compatible products in its wireless and Bluetooth manual.

Method 5: Use an Optical DAC

If your television has optical output but the chair accepts only analog input, you need a digital-to-analog converter, commonly called a DAC.

The correct signal path is:

TV optical output → TOSLink cable → DAC optical input → DAC analog output → X Rocker input

Optical DAC Setup

1. Connect a TOSLink cable to the television's optical output.
2. Connect the other end to the DAC's optical input.
3. Power the DAC, usually through USB.
4. Connect its 3.5 mm or RCA output to the chair.
5. Open the television's digital-audio settings.
6. Select PCM or Stereo PCM.
7. Disable Dolby Digital, DTS or bitstream if the DAC supports only stereo PCM.
8. Test at a low volume.

Correction: The required device is not an analog-to-digital converter. The television supplies digital audio, which must be converted into the analog signal accepted by the chair.

Method 6: Use an HDMI Audio Extractor

PS5 and Xbox Series X/S do not include conventional optical audio outputs. If the display also lacks headphone or RCA output, an HDMI audio extractor can provide analog audio.

Connect it as follows:

Console HDMI → extractor HDMI input → extractor HDMI output → display

Then connect:

Extractor 3.5 mm or RCA output → X Rocker input

Choosing the Right Extractor

Confirm that the extractor supports:

• Your target resolution
• 60 Hz, 120 Hz or another required refresh rate
• HDR
• VRR
• HDCP
• The required HDMI 2.0 or HDMI 2.1 bandwidth
• Stereo PCM audio output

A cheap 4K 60 Hz extractor can prevent a 120 Hz display from receiving its full signal. For competitive setups, controller audio or a native television output is usually simpler.

Can You Use the Chair and TV Speakers Together?

That depends on the television. Some displays allow simultaneous internal-speaker and headphone output. Others mute their speakers as soon as a headphone cable is inserted.

Look for settings such as:

• Simultaneous Audio Output
• TV Speakers + Headphones
• Multiple Audio Output
• Internal Speakers and Optical
• Bluetooth Speaker + TV Speaker

If the television cannot output to both, an HDMI extractor or audio splitter may provide another route. Passive splitters can reduce volume or introduce noise, so an active solution is preferable for longer cable runs.

Voice Chat and Microphone Limitations

The chair's built-in speakers reproduce audio, but they do not automatically send microphone audio back to the console.

For voice chat, use:

• The DualSense controller microphone
• A compatible headset connected to the chair's headset socket
• A USB microphone
• A console-compatible wireless headset

X Rocker says headset and chat compatibility through its controller method is limited to certain chairs purchased after September 2020. Check the control-panel manual before relying on this feature.

X Rocker Has Power but No Sound

1. Confirm the Correct Input

Set the chair to AUX, Bluetooth or the correct wireless channel. A chair in Bluetooth mode will not play sound from its analog input.

2. Test the Chair With a Phone

Connect a phone by Bluetooth or 3.5 mm cable. If music works, the chair and amplifier are functioning and the issue is probably the console or television configuration.

3. Increase Both Volume Controls

Check all relevant levels:

• Console headset volume
• TV headphone volume
• Windows output volume
• Chair master volume
• Game-specific volume
• Chat/game balance

4. Check Input and Output Labels

The cable must run from an output on the source to an input on the chair. Connecting two input ports together produces no sound.

5. Select Stereo PCM

When using optical audio or an extractor, change the source to PCM stereo. Unsupported Dolby or DTS bitstreams are a common cause of silence.

6. Reseat or Replace the Cable

Push both plugs in fully. Remove any phone case obstructing a connector and test another stereo cable.

7. Disconnect Previous Bluetooth Devices

A chair may silently reconnect to a phone in another room. Disable Bluetooth on previously paired devices and repeat pairing.

8. Check the Wireless Channel

When using an X Rocker transmitter, the transmitter and chair must use the same numbered band.

Buzzing, Humming or Distorted Audio

Reduce Excessive Source Volume

Lower the source to approximately 50–75% and use the chair control for the final volume.

Separate Power and Audio Cables

Do not coil the analog cable tightly around power adapters, extension leads or powered HDMI equipment.

Test Another Power Outlet

A ground loop can create humming when several powered devices are connected together. Testing the chair and display on the same power strip can sometimes help.

Consider a Ground-Loop Isolator

An inline 3.5 mm ground-loop isolator can reduce persistent hum, although inexpensive models may weaken the bass response.

Check the Vibration Setting

On models with bass-responsive vibration, an excessive vibration or bass setting can resemble speaker distortion. Reduce it before assuming the speaker is defective.

Once connected, an action-heavy title from HEET's PS5 boxing games guide can provide a useful test for impact sounds, dialogue and bass response.

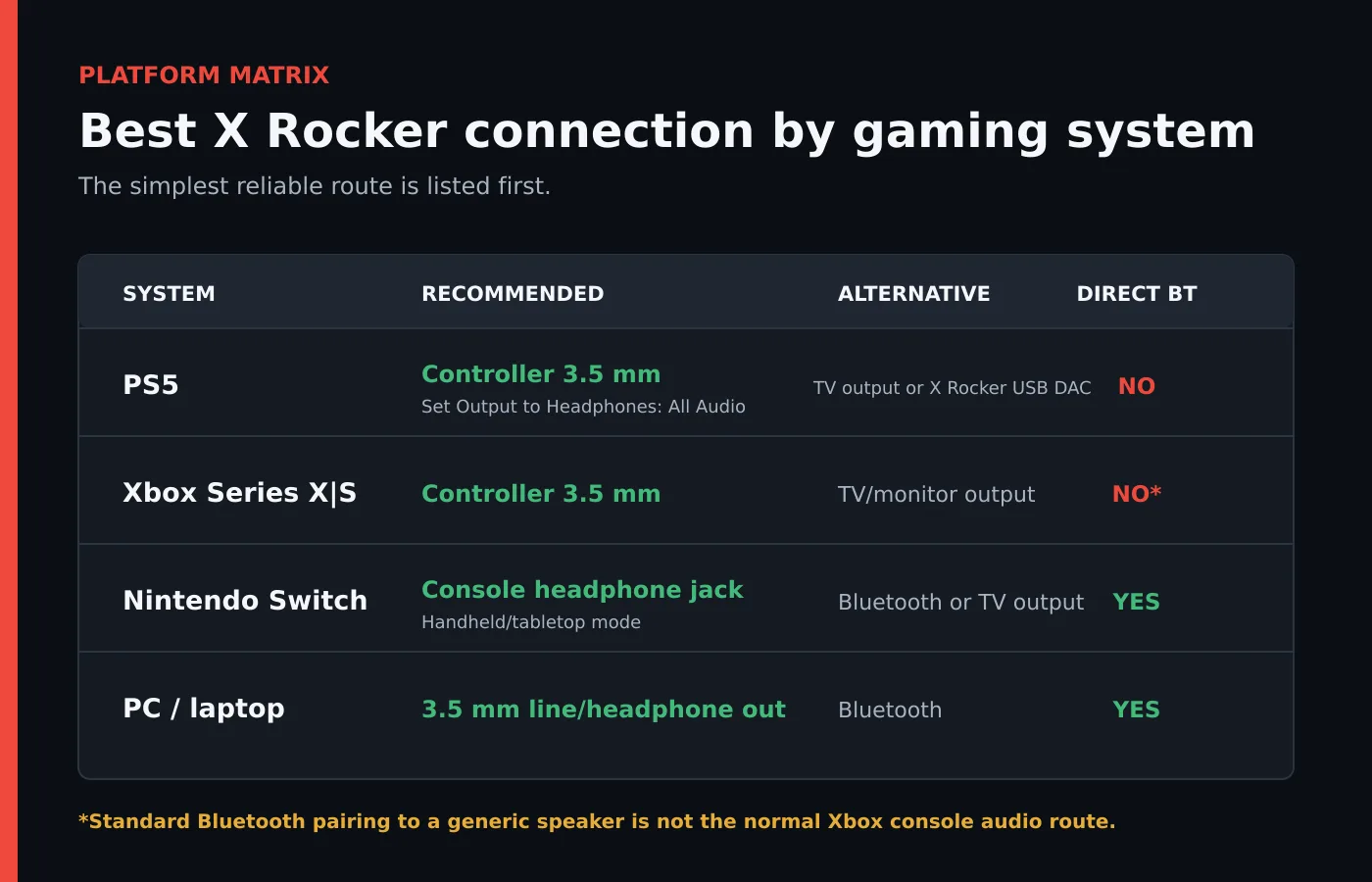

Which Connection Is Best?

• PS5: Use the DualSense 3.5 mm output.
• Xbox Series X/S: Use the controller's 3.5 mm port.
• Switch in handheld mode: Use the console headphone socket.
• Switch in docked mode: Use Bluetooth or TV audio output.
• PC: Use 3.5 mm for the least delay or Bluetooth for convenience.
• Multiple consoles on one TV: Connect through the television.
• Monitor without audio output: Use an HDMI audio extractor.
• Compatible wireless X Rocker: Use its supplied transmitter or DAC.

A wired connection remains the best default for rhythm games, shooters and other situations where audio timing matters. Bluetooth is tidier, but delay varies between the source, codec and chair.

Frequently Asked Questions

Why Will My X Rocker Not Connect to PS5 Bluetooth?

PS5 does not support generic Bluetooth audio devices. Connect the chair to the DualSense controller, television or a compatible transmitter instead.

Can I Plug an X Rocker Directly Into an Xbox Controller?

Yes, provided the chair has a compatible analog audio input. Use a 3.5 mm stereo cable and adjust headset volume through the Xbox audio menu.

Does an X Rocker Work With Nintendo Switch?

Yes. Depending on the chair, use the Switch headphone socket, Bluetooth audio or the television's audio output when docked.

Does Every X Rocker Chair Have Bluetooth?

No. Some models are wired, some use Bluetooth and others use a proprietary transmitter.

Can I Connect an X Rocker Through USB?

Only when the manual explicitly says that the model or transmitter supports USB audio. Many USB connections supply power only.

Why Does the Chair Vibrate but Produce No Clear Audio?

The source may be sending a bass signal while the speaker volume, input mode or audio format is incorrect. Check the master volume and switch digital output to stereo PCM.

Do I Need a DAC for an X Rocker?

Only when the available source is digital, such as optical SPDIF, while the chair accepts analog 3.5 mm or RCA audio.

Can I Hear the Television and Chair Simultaneously?

Only if the television supports simultaneous output or you use suitable splitting or extraction hardware.

Can the Chair Handle Game Chat?

Game sound normally works, but microphone and chat return support depend on the chair's headset socket and control panel. Older models may not support it.

The most reliable X Rocker setup is usually the simplest connection supported by both devices.

Start with a 3.5 mm controller or display connection. Use Bluetooth only when both devices support standard Bluetooth audio, and add a DAC or HDMI extractor only when there is no suitable analog output.

Most connection problems come from an incorrect input mode, low source volume, unsupported surround format or the assumption that every USB or Bluetooth device works directly with every console.
